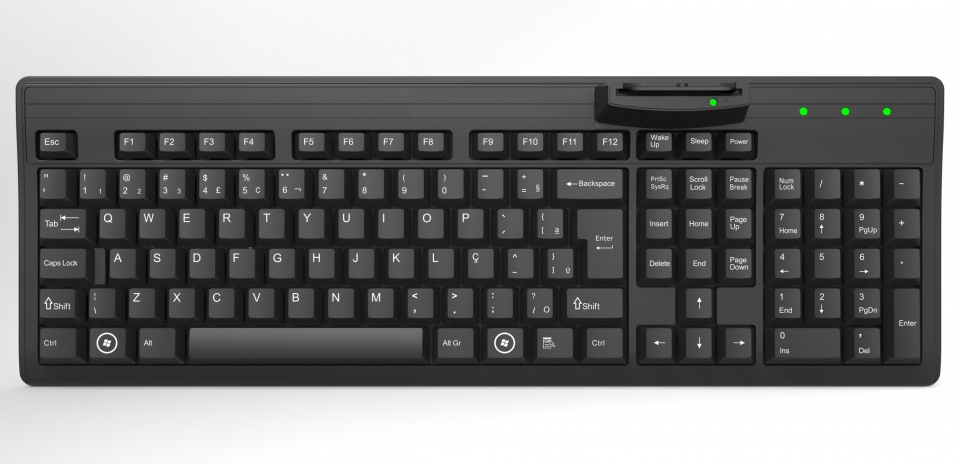

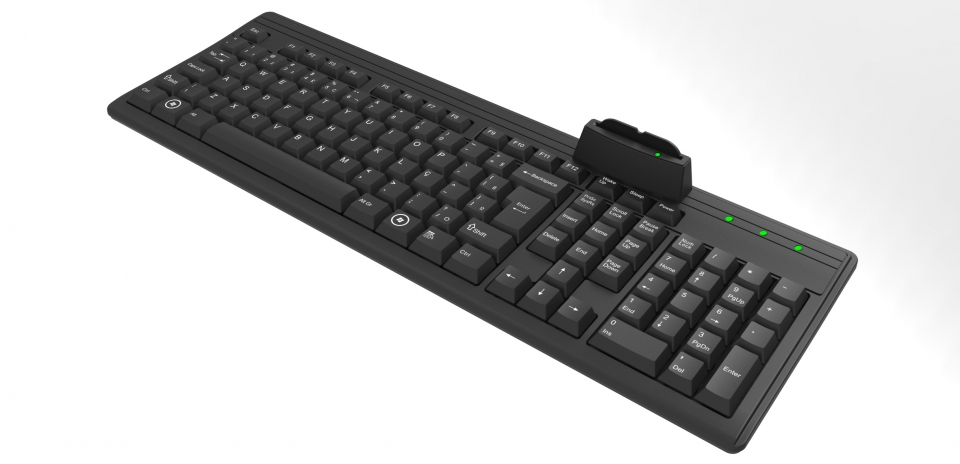

SMART CARD READER KEYBOARD
Code：THRC-2002 BL7R
MODEL NO. F21-BL7R
1、Dimension 450×151(W)×27 (H) MM
2、Weight 560±10g
3、Key pitch 18.2m(1*1 key)
4、Keytop travel and force Travel:
3.2±0.5mm
5、Standard Operating force 55±10gf
6、Keyboard compatibility
XP SP2 or SP3 / Vista / Windows 7 / Windows 8 / Windows 8.1 / MAC OS 10.4 or above
7、Key number 108 keys
8、Rubber life 1,000,0000times
9、Operating Humidity -20°C~60°C
10、Storage temperature
20% to 90% RH non-condensing
11、Operating temperatur 0°C~45°C
12、Available port USB
13、Supply voltage 5VDC±10%
14、Power current Max 60mA
15、USB cable length: 1580mm
16、Smartcard-reader specifications[page3image13351744]Hardware interfaceHardware interface Card Acceptor / Durability Transmission speed reader
Display
USB
100,000 insertion cycles system: max. 12 MBit/s card: 412,903 Bit/s Green LED indicator[page3image13351936] [page3image13352128] [page3image13352320]Compliant IC Card Standard
Support
Support Support
ISO7816 Class A, B and C (5V/3V/1.8V)
SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via External EEPROM
PC Smart Card industry standard – PC/SC 2.0
Microsoft Smart Card for Windows[page3image12883776]Support I2C memory card, SLE4418, SLE4428,[page3image12884160]SLE4432, SLE4442, SLE4436.
Support ISO7816 –1,2,3 T=1 and T=0 protocol.
CT-Api, PC/SC, CCID
Software interface
Driver Support Agency Approvals
17、Keyboard Layout:
Windows 10/ Vista/Win 98/ME/2000/XP/CE3.0; Linux
FCC/CE/EMV 4.0 Level / PC SC
1、Dimension 450×151(W)×27 (H) MM
2、Weight 560±10g
3、Key pitch 18.2m(1*1 key)
4、Keytop travel and force Travel:
3.2±0.5mm
5、Standard Operating force 55±10gf
6、Keyboard compatibility
XP SP2 or SP3 / Vista / Windows 7 / Windows 8 / Windows 8.1 / MAC OS 10.4 or above
7、Key number 108 keys
8、Rubber life 1,000,0000times
9、Operating Humidity -20°C~60°C
10、Storage temperature
20% to 90% RH non-condensing
11、Operating temperatur 0°C~45°C
12、Available port USB
13、Supply voltage 5VDC±10%
14、Power current Max 60mA
15、USB cable length: 1580mm
16、Smartcard-reader specifications[page3image13351744]Hardware interfaceHardware interface Card Acceptor / Durability Transmission speed reader
Display
USB
100,000 insertion cycles system: max. 12 MBit/s card: 412,903 Bit/s Green LED indicator[page3image13351936] [page3image13352128] [page3image13352320]Compliant IC Card Standard
Support
Support Support
ISO7816 Class A, B and C (5V/3V/1.8V)
SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via External EEPROM
PC Smart Card industry standard – PC/SC 2.0
Microsoft Smart Card for Windows[page3image12883776]Support I2C memory card, SLE4418, SLE4428,[page3image12884160]SLE4432, SLE4442, SLE4436.
Support ISO7816 –1,2,3 T=1 and T=0 protocol.
CT-Api, PC/SC, CCID
Software interface
Driver Support Agency Approvals
17、Keyboard Layout:
Windows 10/ Vista/Win 98/ME/2000/XP/CE3.0; Linux
FCC/CE/EMV 4.0 Level / PC SC
-
MODEL NO. F21-BL7R
1、Dimension 450×151(W)×27 (H) MM
2、Weight 560±10g
3、Key pitch 18.2m(1*1 key)
4、Keytop travel and force Travel:
3.2±0.5mm
5、Standard Operating force 55±10gf
6、Keyboard compatibility
XP SP2 or SP3 / Vista / Windows 7 / Windows 8 / Windows 8.1 / MAC OS 10.4 or above
7、Key number 108 keys
8、Rubber life 1,000,0000times
9、Operating Humidity -20°C~60°C
10、Storage temperature
20% to 90% RH non-condensing
11、Operating temperatur 0°C~45°C
12、Available port USB
13、Supply voltage 5VDC±10%
14、Power current Max 60mA
15、USB cable length: 1580mm
16、Smartcard-reader specifications[page3image13351744]Hardware interfaceHardware interface Card Acceptor / Durability Transmission speed reader
Display
USB
100,000 insertion cycles system: max. 12 MBit/s card: 412,903 Bit/s Green LED indicator[page3image13351936] [page3image13352128] [page3image13352320]Compliant IC Card Standard
Support
Support Support
ISO7816 Class A, B and C (5V/3V/1.8V)
SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via External EEPROM
PC Smart Card industry standard – PC/SC 2.0
Microsoft Smart Card for Windows[page3image12883776]Support I2C memory card, SLE4418, SLE4428,[page3image12884160]SLE4432, SLE4442, SLE4436.
Support ISO7816 –1,2,3 T=1 and T=0 protocol.
CT-Api, PC/SC, CCID
Software interface
Driver Support Agency Approvals
17、Keyboard Layout:
Windows 10/ Vista/Win 98/ME/2000/XP/CE3.0; Linux
FCC/CE/EMV 4.0 Level / PC SC -
